Vehicle in Circular Motion

Vehicle in Circular Motion#

Part 1#

A sedan of mass 2200.0 \(\rm{kg}\) in uniform circular motion accelerates towards the _________ of the circle due to the force of __________ friction between the sedan’s tires and the road. Please fill in the blanks with one of the options below (The choices are presented in the same order as they should appear in the sentence.)

Fig. 1 The left side of the image is a diagram labelled 'Top view of vehicle in uniform circular motion' with a circle below. There is a top view of a vehicle on the leftmost point on the circle (180 degrees from the 0 position) with the y axis extending upwards from the vehicle, and the x axis extending similarly towards the right. The right side of the image is titled 'Rear view of vehicle in uniform circular motion' and contains two axes, z (upwards) and x (rightwards) which cross perpendicularly to form a four quadrant graph. At the origin of this graph is a rear-view symbol of the vehicle.

Answer Section#

  • centre, kinetic

  • outside, static

  • centre, static

  • outside, kinetic

Part 2#

If the sedan moves at 85.0 \(\rm{km/h}\) around a circle of radius 130.0 \(\rm{m}\), find the acceleration of the sedan in SI units.

Answer Section#

Please enter in a numeric value.

Part 3#

Draw a free body diagram in the \(xz\) plane (the plane shown on the right of Fig.1) to show the forces acting on the sedan in the directions perpendicular to the sedan’s motion. Please upload a pdf titled “fbd1”.

Answer Section#

File upload box will be shown here.

Part 4#

Find the size of the frictional force that keeps the sedan in circular motion.

Answer Section#

Please enter in a numeric value.

Part 5#

Above what speed would the sedan’s frictional force be overcome as the sedan tries to follow this curve?

\(\mu_s =\) 0.6, \(\mu_k =\) 0.4, \(\mu_r =\) 0.02

Answer Section#

Please enter in a numeric value.

Part 6#

If the curve was banked toward the centre of the circle at an angle of 19.0\(^{\circ}\) as shown on the right of Fig. 2, draw a free body diagram for the forces acting on the sedan in the directions perpendicular to the direction of motion as the sedan moves around the circle at 85.0 \(\rm{km/h}\).

Please upload a pdf titled “fbd2”.

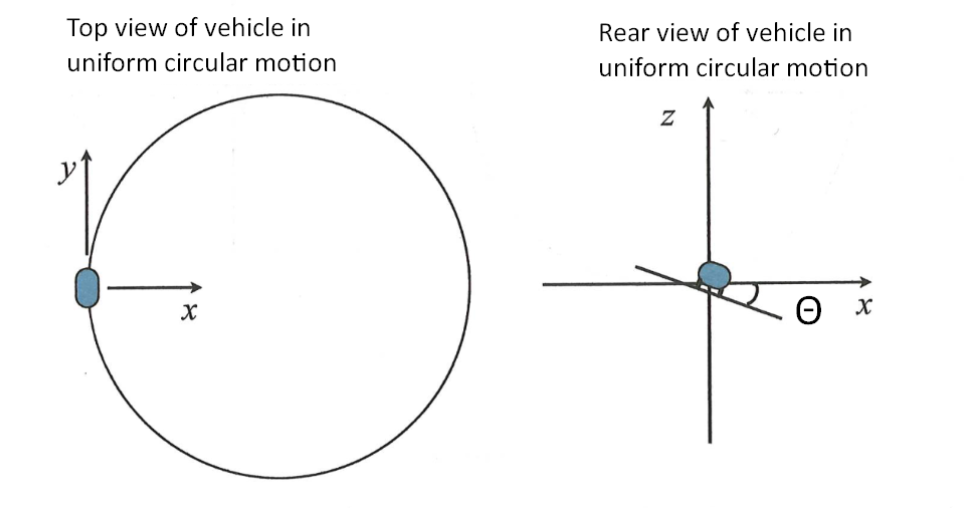

Fig. 2 The left side of the image is a diagram labelled 'Top view of vehicle in uniform circular motion' with a circle below. There is a top view of a vehicle on the leftmost point on the circle (180 degrees from the 0 position) with the y axis extending upwards from the vehicle, and the x axis extending similarly towards the right. The right side of the image is titled 'Rear view of vehicle in uniform circular motion' and contains two axes, z (upwards) and x (rightwards) which cross perpendicularly to form a four quadrant graph. At the origin of this graph is a rear-view symbol of a vehicle, angled downwards below the positive x-axis at an angle labelled as theta.

Answer Section#

File upload box will be shown here.

Part 7#

Resolving your vectors, solve for the force of friction required to keep the sedan in uniform circular motion at this speed with the banked curve.

Answer Section#

Please enter in a numeric value.
