Task 1: Animation#

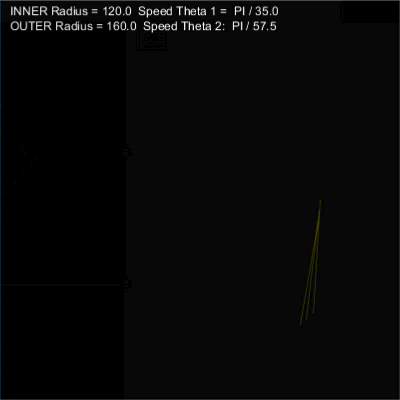

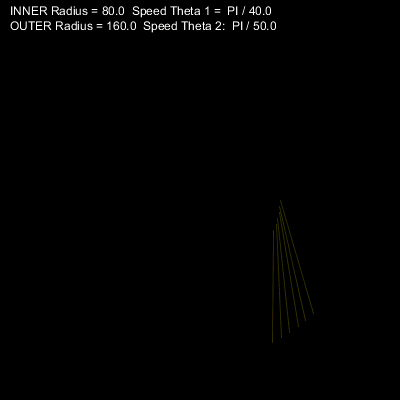

Create a program that animates the creation of shapes similar to the ones below:

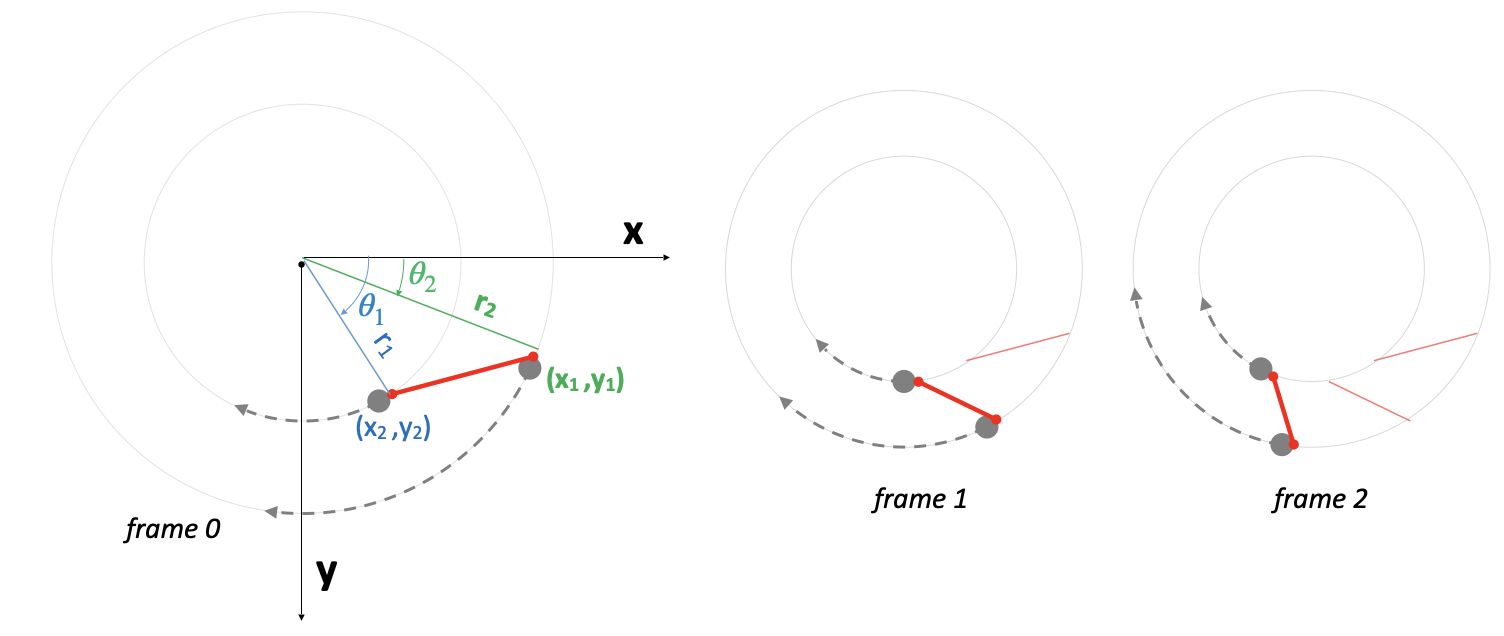

Use the starter code and then complete the missing code in order to create the above animations. The basic idea is as follows (see the diagrams below):

  • Draw a line in each new frame without clearing the previous frames.

  • The start and end points of the line should constantly move along the circumference of two circles located at the sketch center.

  • Use circle equations: x = r cos(theta) and y = r sin(theta) to determine the position of the points

  • Animate the angle theta for the two points at different speeds.

../../../_images/img22.png

Specifications#

  • We are expecting you to commit your work often (try to aim for a minimum of 3-5 commits per lab) with useful commit messages marking your progress.

  • The origin is moved to the center of the sketch.

  • The points (x1,y1) and (x2,y2) are computed using r and theta (circle equations).

  • A line is drawn between (x1,y1) and (x2,y2).

  • The angles theta1 and theta2 are animated.

Embed an animated gif of your drawing#

Embed the animated gif you created here using markdown syntax:
